I CAN Hack

CAN Bus Throwing Star

CAN Bus Throwing Star

Regular price €49,99 EUR
Regular price Sale price €49,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

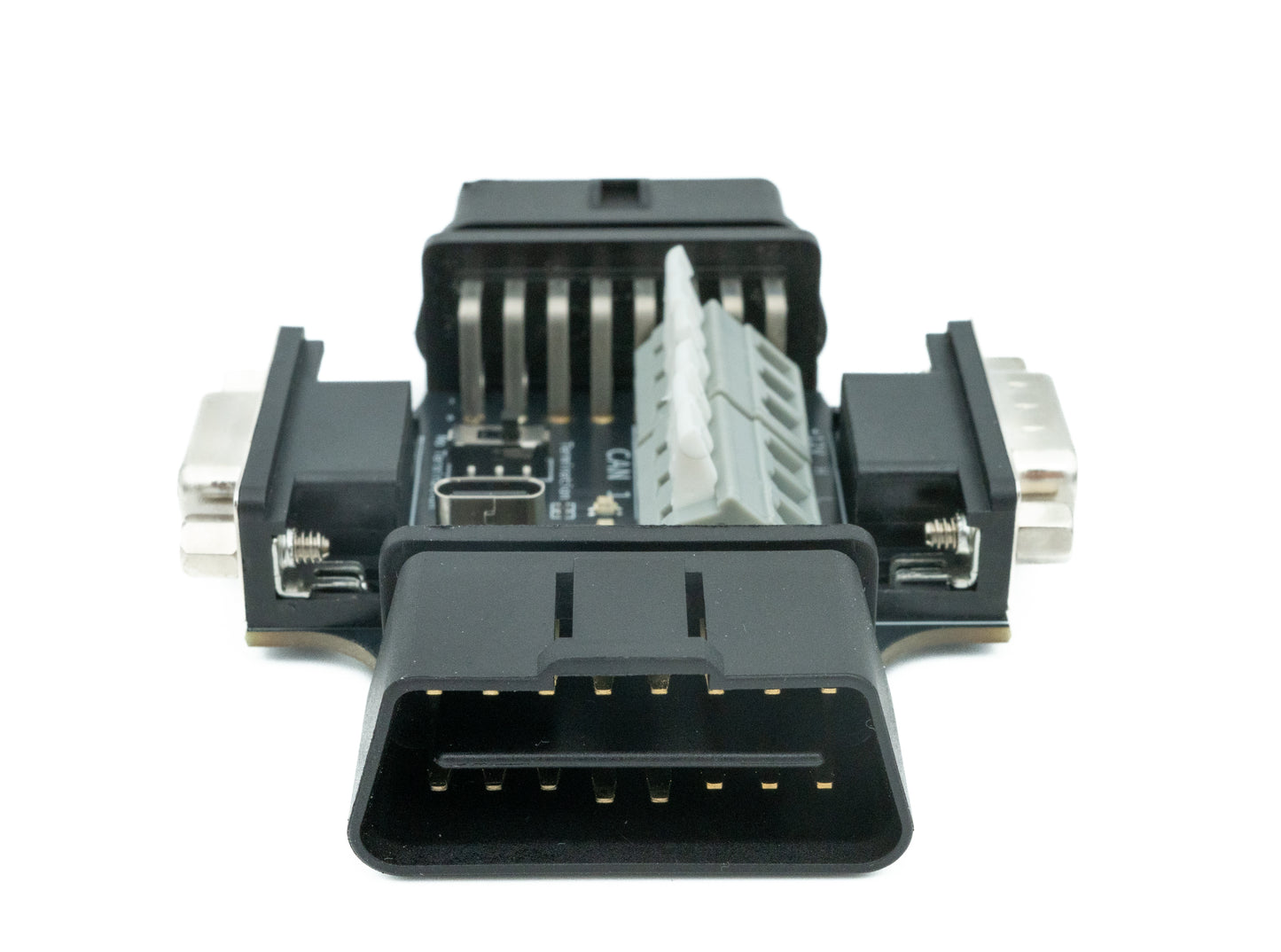

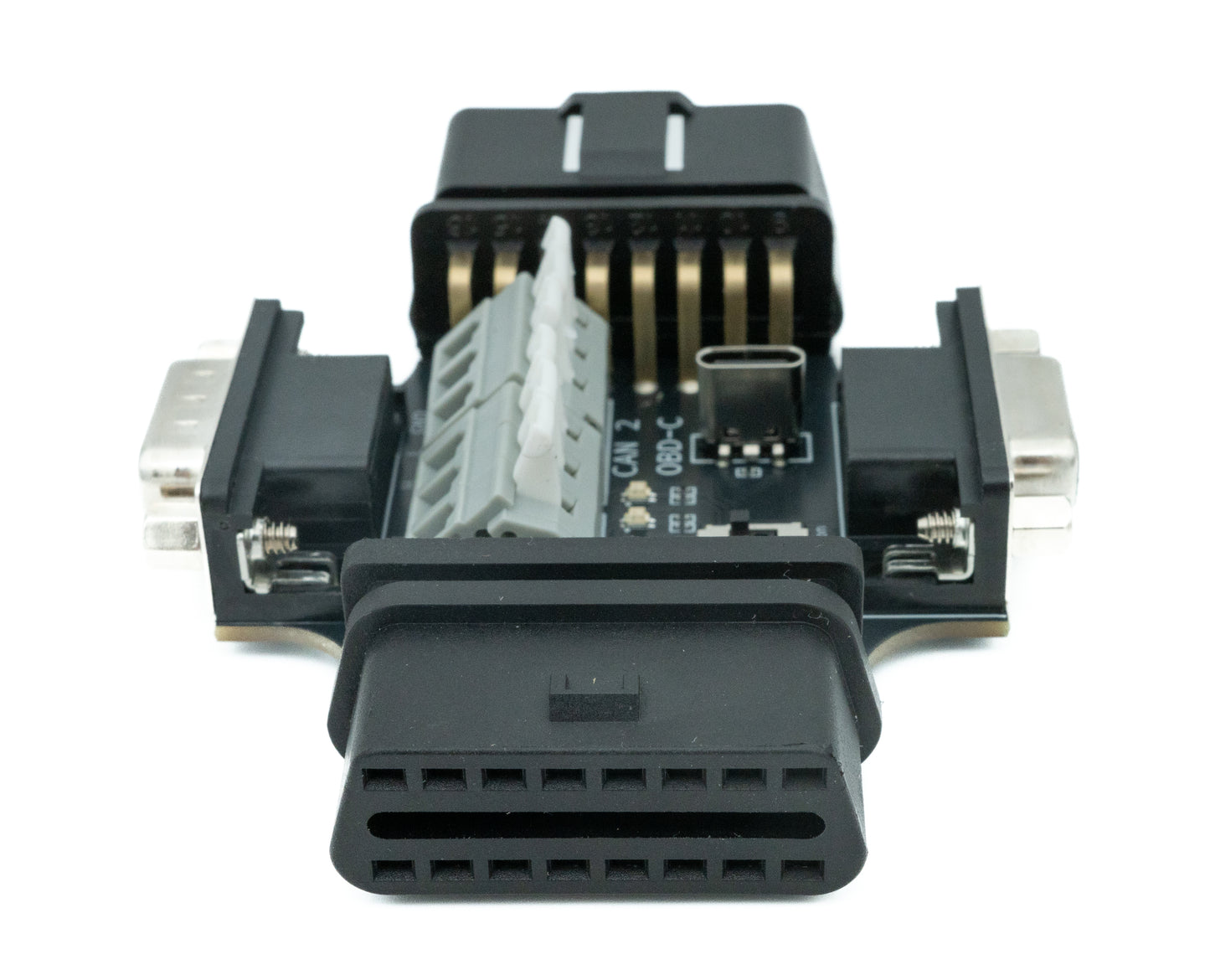

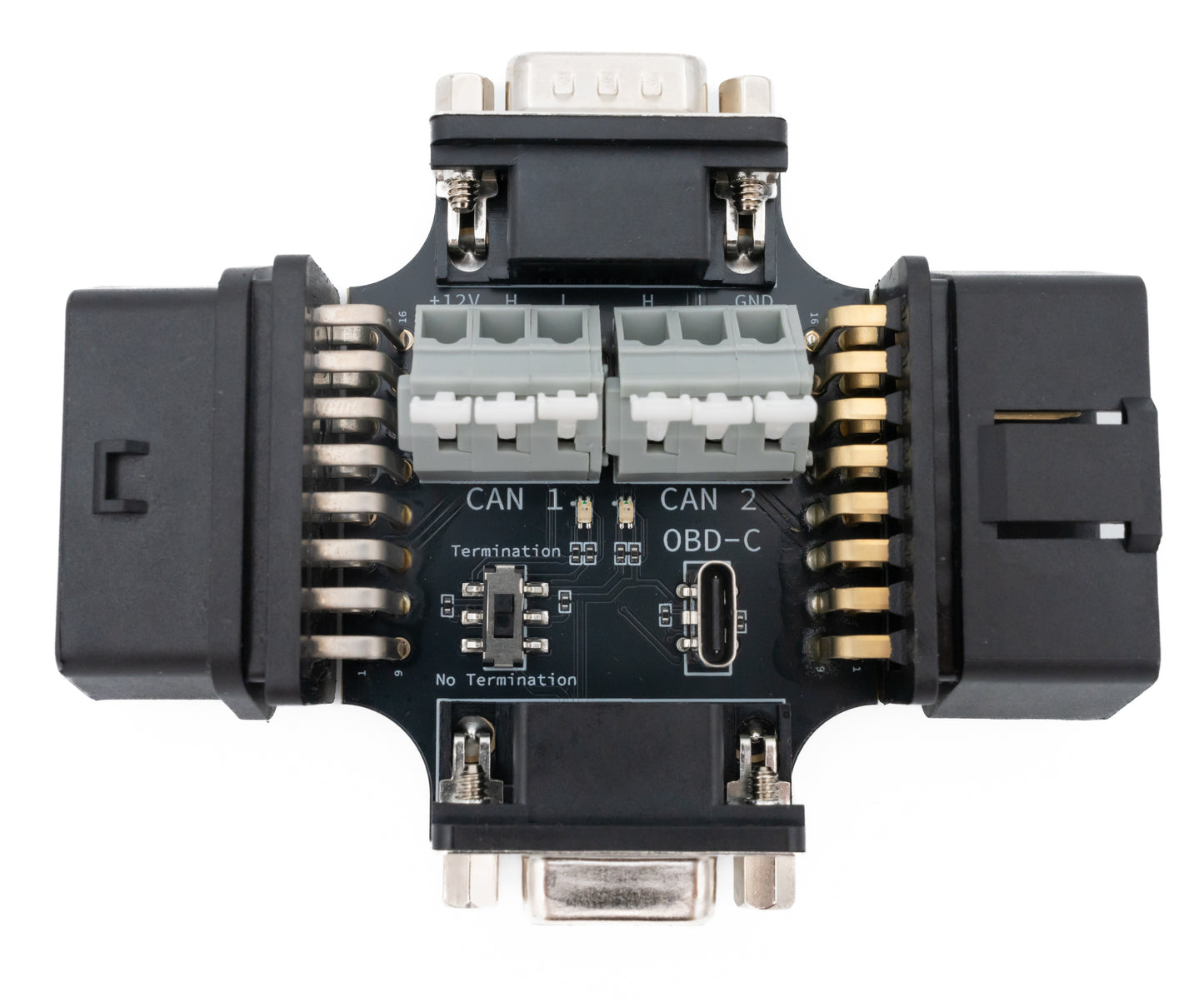

The CAN Bus Throwing Star is the ideal gadget to wire into a CAN bus or convert from different connectors. It contains a switch to enable termination resistance (120 Ω). It has 2 CAN busses, and converts between the following connectors:

  • OBD-II (SAE J1962) - Male & Female
  • DB-9 - Male & Female
  • OBD-C - comma.ai's CAN connector, compatible with black/red panda and comma 3
  • Wire Terminals - Spring loaded for tool-less insertion of large and small gauge wires (12-28 gauge)

Features

  • Switchable termination resistor (120 Ω)
  • Multi-color Indicator LEDs. Green for activity, red when CAN L & H is swapped
  • Multiple throwing stars can be daisy chained using any available connector

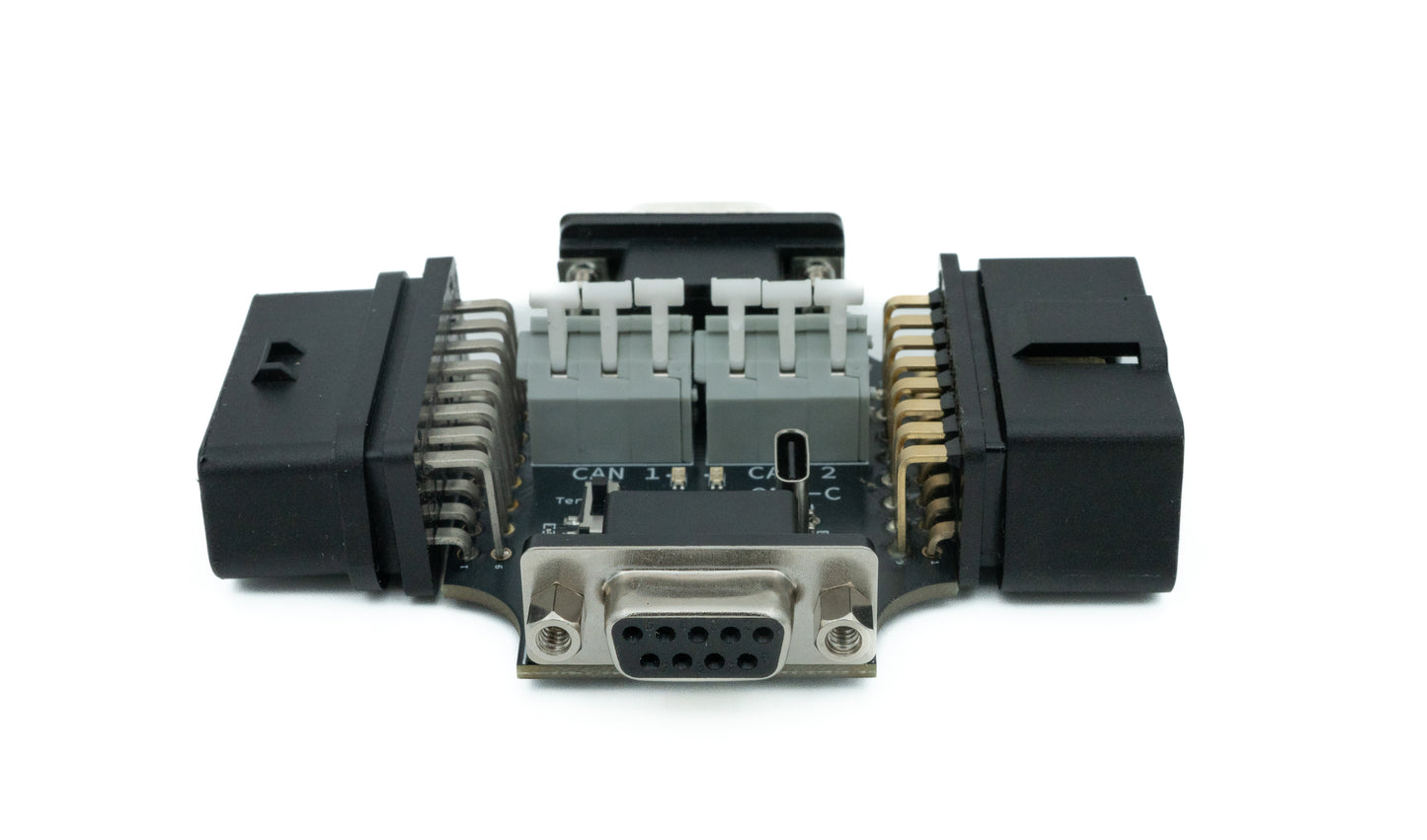

  • Metal shield on Female DB-9 is removable, plug in a CAN adapter without needing a cable.

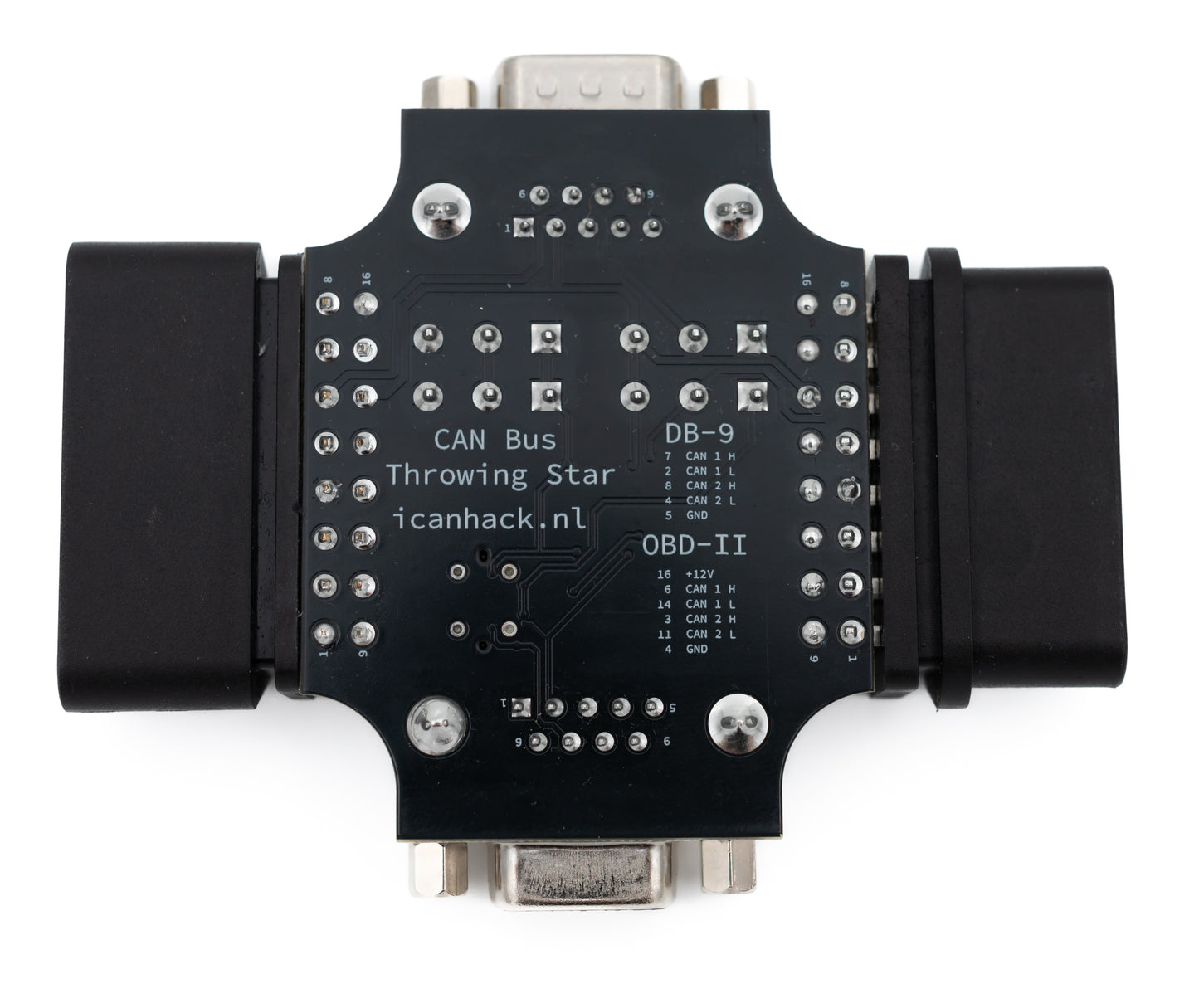

DB-9 Pinout

  • CAN 1 H: Pin 7
  • CAN 1 L: Pin 2
  • CAN 2 H: Pin 8
  • CAN 2 L: Pin 4
  • GND: Pin 5

OBD-II Pinout

  • +12V: Pin 16
  • CAN 1 H: Pin 6
  • CAN 1 L : Pin 14
  • CAN 2 H: Pin 3
  • CAN 2 L: 11
  • GND: Pin 4

Dimensions & Weight

  • Dimensions: 90 x 75 x 21 mm (WxLxH)
  • Weight: 60 grams (2.2 oz)

Notes

  • This is not a USB to CAN adapter!
  • Only connect the OBD-C port to a comma.ai panda or comma 3, do not plug into a computer
